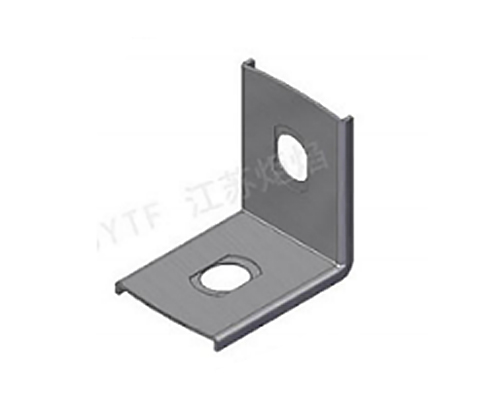

二维连接件  Two-dimensional connections JYB-02A

特点

■适用于垂直角的安装;

■与槽钢宽度相宜,紧密配合;

■采用两侧员弧和加强筋,增加了连接稳定性,增加成品支架的部件刚性;

■材料:碳素钢,按照DlN EN10025标准生产;镀锌工艺符合ASTM A153标准,镀锌层厚度为56μm;达克罗;环氧喷涂。

CHARACTERISTICS

■Installation for angle

■Appropriate to the width of the channel steel, close coordination

■With both sides of circular arc and reinforcement the stability of the connection is improved and the rigidity of the parts is increased

■Material: carbon steel, according to DIN EN 10025 standard, the galvanizing process conforms to the ASTM A153 standard, the thickness of the galvanized layer is 56um; dacromet; epoxy coatin

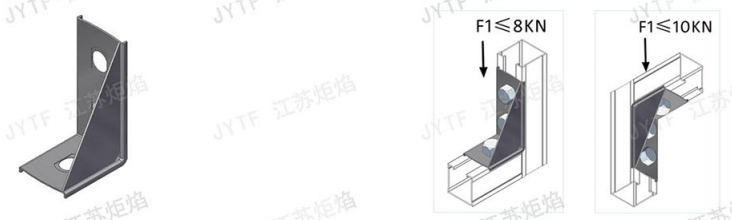

二维连接件  Two-dimensional connections JYB-03A

特点

■适用于垂直角的安装;

■与槽钢宽度相宜,紧密配合;

■双锁扣固定设计,增加垂直剪力;

■安装垂直长度大于水平长度,增加了载荷;

■采用两侧圆弧和加强筋,增加了连接稳定性,增加部件刚性；

■材料:碳素钢,按照DlN EN10025标准生产;镀锌工艺符合ASTM A153标准,镀锌层厚度为56μm;达克罗;环氧喷涂。

CHARACTERISTICS

■Installation for vertical angle.

■Appropriate to the width of the channel steel, close coordination

■Fixed design with double lock buckle to improve vertical shear.

■The vertical length of the installation is greater than the horizontal length, and the load is added

■With both sides of circular arc and reinforcement, the stability of the connection is improved and the rigidity of the parts is increased

■Material: high quality carbon steel, according to DIN EN 10025 standard, the galvanizing process conforms to the ASTM A153 standard, the thickness of the galvanized layer is 56um; dacromet; epoxy coating.

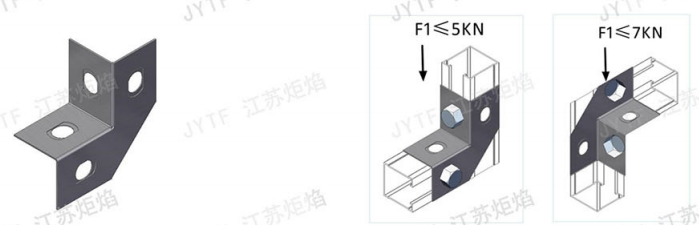

二维连接件  Two-dimensional connections JYB-03B

特点

■适用于垂直角的安装;

■与槽钢宽度相宜,紧密配合;

■双锁扣固定设计,增加垂直剪力;

■安装垂直长度大于水平长度,增加了载荷;

■采用两侧圆弧和加强筋,增加了连接稳定性,增加部件刚性；

■材料:碳素钢,按照DlN EN10025标准生产;镀锌工艺符合ASTM A153标准,镀锌层厚度为56μm;达克罗;环氧喷涂。

CHARACTERISTICS

■Installation for vertical angle.

■Appropriate to the width of the channel steel, close coordination

■Fixed design with double lock buckle to improve vertical shear.

■The vertical length of the installation is greater than the horizontal length, and the load is added

■With both sides of circular arc and reinforcement, the stability of the connection is improved and the rigidity of the parts is increased

■Material: high quality carbon steel, according to DIN EN 10025 standard, the galvanizing process conforms to the ASTM A153 standard, the thickness of the galvanized layer is 56um; dacromet; epoxy coating.

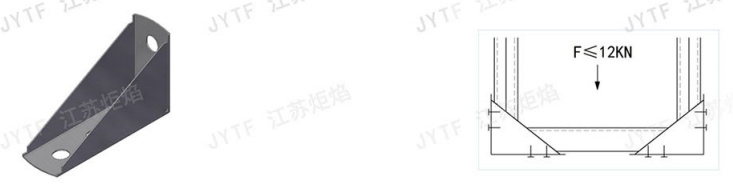

二维连接件  Two-dimensional connections JYB-04C

特点

■适用于垂直角的安装;

■加强板焊接设计,减少倾覆,增加稳定性;

■与槽钢宽度相宜,紧密配合;

■材料:碳素钢,按照DNlEN 10025标准生产;镀锌工艺符合ASTMA153标准,镀锌层厚度为56μm;达克罗;环氧喷涂。

CHARACTERISTICS

■nstallation for vertical angle.

■Strengthening plate welding design, reducing overturning and improving stability.

■Appropriate to the width of the channel steel, close coordination.

■Material: high quality carbon steel, according to DIN EN 10025 standard, the galvanizing process conforms to the ASTM A153 standard, the thickness of the galvanized layer is 56um; dacromet; epoxy coating.

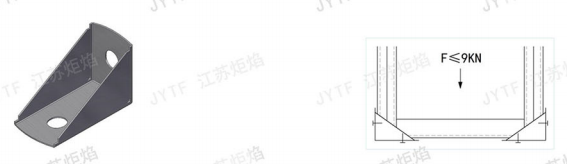

二维连接件  Two-dimensional connections JYB-08A

特点

■适用于重型应用,增加载荷;

■加强板焊接设计,减少倾覆,增加稳定性；

■门锁设计,美观漂亮;

■材料:碳素钢,按照 DIN EN10025标准生产;镀锌工艺符合ASTMA153标准,镀锌层厚度为56μm;达克罗;环氧喷涂。

CHARACTERISTICS

■Suitable for heavy application and increase load.

■Strengthening plate welding design, preventing overturning and improvingstability.

■Door lock design, beautiful and beautiful.

■Material: high quality carbon steel, according to DIN EN 10025 standard, the galvanizing process conforms to the ASTM A153 standard, the thickness of the galvanized layer is 56um; dacromet; epoxy coating.

二维连接件  Two-dimensional connections JYB-02

特点

■适用于垂直角的安装；

■包角设计,减少倾覆,增加稳定性;

■与槽钢宽度相宜,紧密配合;

■材料:碳素钢,按照DINEN10025标准生产;镀锌工艺符合ASTMA153标准,镀锌层厚度为56μm;达克罗;环氧喷涂。

CHARACTERISTICS

■Installation for vertical angle.

■Package angle design to reduce overturning and improve stability

■Appropriate to the width of the channel steel, close coordination

■Material: carbon steel, according to DIN EN 10025 standard, the galvanizing process conforms to the ASTM A153 standard, the thickness of the galvanized layer is 56um; dacromet; epoxy coatin

二维连接件  Two-dimensional connections JYB-04

特点

■适用于重型应用,增加载荷;

■包角设计,减少倾覆,增加稳定性;

■门锁设计,美观漂亮;

■材料:碳素钢,按照DIN EN10025标准生产;镀锌工艺符合ASTMA153标准,镀锌层厚度为56μm;达克罗;环氧喷涂。

CHARACTERISTICS

■Suitable for heavy application and increase load.

■Package angle design to reduce overturning and improve stability.

■Unique door lock design, beautiful and beautiful.

■Material: carbon steel, according to DIN EN 10025 standard, the galvanizing process conforms to the ASTM A153 standard, the thickness of the galvanized layer is 56um; dacromet; epoxy coating.
