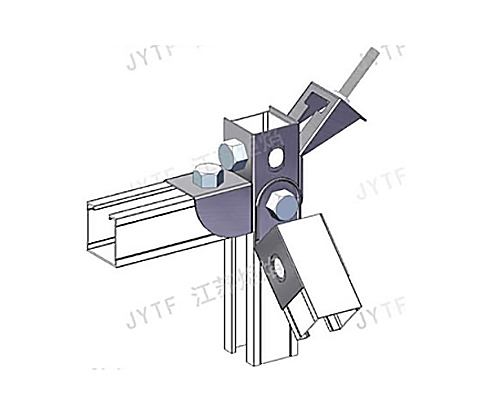

特点

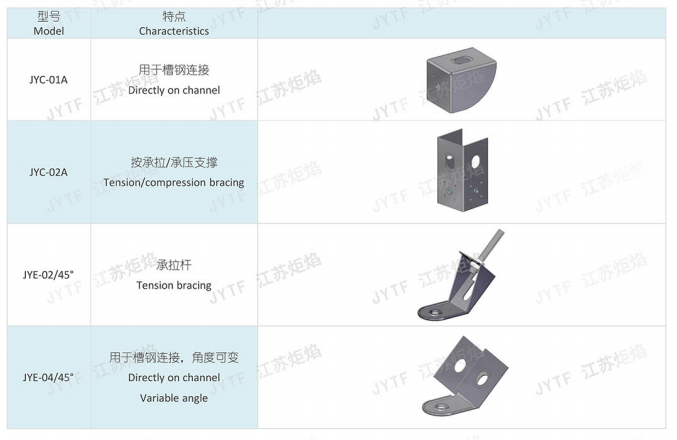

■具备较好的通用性,四种配件能完成一些组合;

■现场随机使用,简便快捷;

■45°转接件及斜拉件的角度可调并设有预定的弯折点;

■材料:碳素钢,按照DlN EN10025标准生产;镀锌工艺符合ASTM A153标准,成品支架的镀锌层厚度为56μm;达克罗;环氧喷涂。

CHARACTERISTICS

■With  versatility four parts can complete combinations.

■Site random use, simple and quick.

■The angle of the 45 connecting parts and the cable-stayed parts is adjustable and the predetermined bending point is set.

■Material:  carbon steel, according to DIN EN 10025 standard, the galvanizing process conforms to the ASTM A153 standard, the thickness of the galvanized layer is 56um;

dacromet; epoxy coating.

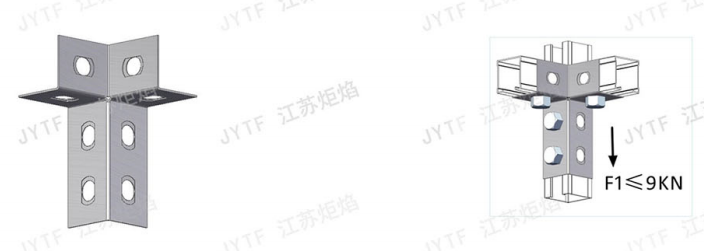

多维连接件  Multidimensional connections JYC-06A

特点

■适用于安装三维结构,缩短工期，节省材料;

■连接形成多方向的支架结合点；

■材料:碳素钢,按照DlN EN10025标准生产;镀锌工艺符合ASTMA153标准,镀锌层厚度为56μm;达克罗;环氧喷涂。

CHARACTERISTIC

■It is suitable for the installation of three dimensional structure, shortening the time limit and saving material.

■Connection to form a multidirectional bracket binding point.

■Material: carbon steel, according to DIN EN 10025 standard, the galvanizing process conforms to the ASTM A153 standard, the thickness of the galvanized layer is 56um; dacromet; epoxy coating.

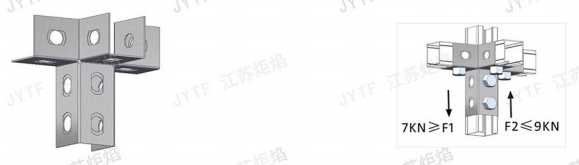

多维连接件  Multidimensional connections JYC-08A

特点

■适用于安装三维结构,缩短工期，节省材料;

■连接形成多方向的支架结合点；

■材料:碳素钢,按照DlN EN10025标准生产;镀锌工艺符合ASTMA153标准,镀锌层厚度为56μm;达克罗;环氧喷涂。

CHARACTERISTIC

■It is suitable for the installation of three dimensional structure, shortening the time limit and saving material.

■Connection to form a multidirectional bracket binding point.

■Material: carbon steel, according to DIN EN 10025 standard, the galvanizing process conforms to the ASTM A153 standard, the thickness of the galvanized layer is 56um; dacromet; epoxy coating.

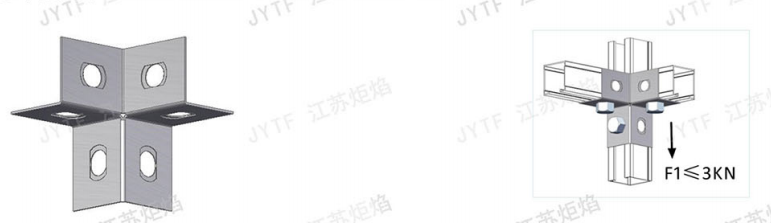

多维连接件  Multidimensional connections JYC-08B

特点

■优化槽钢、托臂等结构在90°方向时的连接;

■可使用锚栓固定于墙面、地面;

■配合其他配件,承受多方向的拉力和剪力;

■材料:碳素钢,按照DNl EN10025标准生产;镀锌工艺符合ASTMA153标准,镀锌层厚度为56m;达克罗;环氧喷涂。

CHARACTERISTICS

■Connection channel, arm structure optimization in the direction of 90 degrees.

■Anchors can be used to fix the wall and ground.

■Cooperate with other accessories to withstand multi direction pull and shear.

■Material:  carbon steel, according to DIN EN 10025 standard, the galvanizing process conforms to the ASTM A153 standard, the thickness of the galvanized layer is 56um; dacromet; epoxy coating.

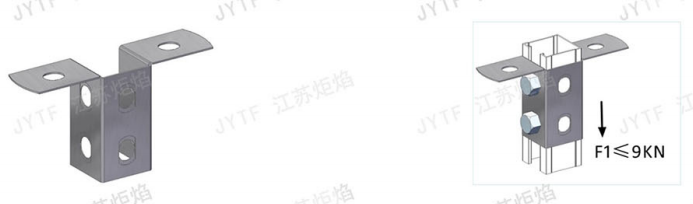

多维连接件  Multidimensional connections JYC-10A

特点

■优化槽钢、托臂等结构在9°方向时的连接;

■可使用锚栓固定于墙面、地面;配合其他配件,承受多方向的拉力和剪力;

■材料:碳素钢,按照DNl EN10025标准生产;镀锌工艺符合ASTMA153标准,镀锌层摩度为56μm;达克罗;环氧喷涂。

CHARACTERISTICS

■Connection channel, arm structure optimization in the direction of 90 degrees.

■Anchors can be used to fix the wall and ground.

■Cooperate with other accessories to withstand multi direction pull and shear.

■Material:  carbon steel, according to DIN EN 10025 standard, the galvanizing process conforms to the ASTM A153 standard, the thickness of the alvanized layer is 56um; dacromet; epoxy coating.

多维连接件  Multidimensional connections JYC-13A

特点

■适用于不同规格的槽钢连接;

■优化槽钢,托臂等结构在多方向的连接;

■配合其他配件,承受多方向的拉力和剪力；

■材料:碳素钢,按照 DIN EN10025标准生产;镀锌工艺符合 ASTMA153标准,镀锌层厚度为56μm;达克罗;环氧喷涂。

CHARACTERISTICS

■Suitable for the connection of channel steel with different specifications.

■The optimization of channel, connecting arm structure in multi direction

■Cooperate with other accessories to withstand multi direction pull and shear

■Material: carbon steel, according to DIN EN 10025 standard, the galvanizing process conforms to the ASTM A153 standard, the thickness of the galvanized layer is 56um; dacromet; epoxy coating
